Dräger Short Term Detection Tubes - Ozone 10/a (Pack of 10)

Dräger Short Term Detection Tubes - Ozone 10/a (Pack of 10)

CH21001
  • £65.89

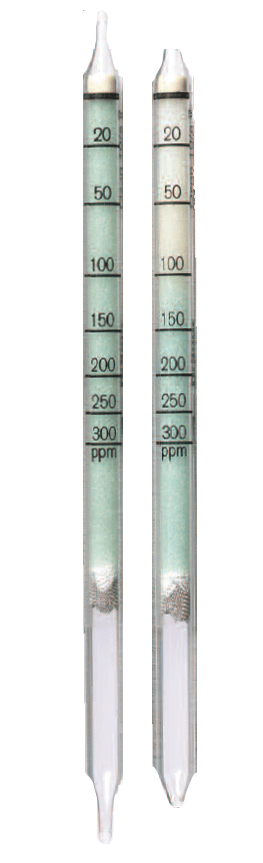

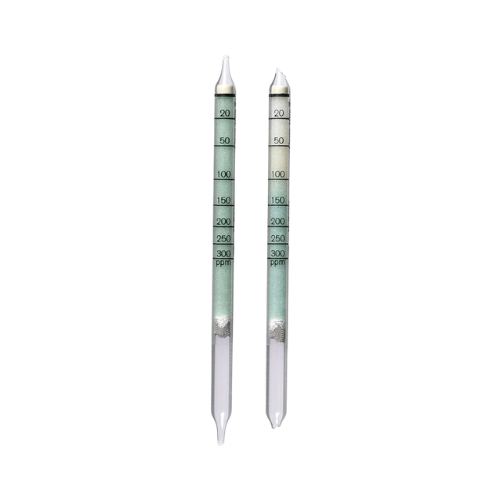

Dräger Tubes For Short Term Measurements: Ozone 10/a

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Ozone 10/a).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

Application Range:

Standard Measuring Range: 20 to 300 ppm
Number of Strokes n: 1
Time for Measurement: approx. 20 s
Standard Deviation: ± 10 to 15 %
Colour Change: greenish blue to yellow

Ambient Operating Conditions:

Temperature: 0 to 40 °C
Absolute Humidity 2 to 30 mg H2O / L

Reaction Principle:

O3 + indigo ~> isatine

Cross Sensitivity:

No interference by: 1 ppm sulfur dioxide 1 ppm chlorine 1 ppm nitrogen dioxide. Higher concentrations of chlorine and nitrogen dioxide discolor the indicating layer a diffuse yellowish grey..
