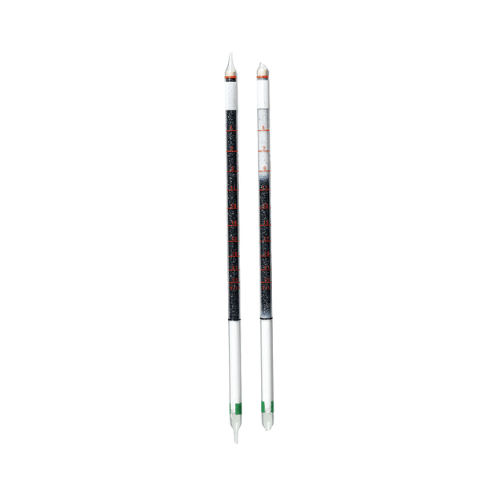

    Dräger Short Term Detection Tubes - Oxygen 5%/C (Pack of 10)

    Dräger Short Term Detection Tubes - Oxygen 5%/C (Pack of 10)

    8103261
    • £122.07


    Dräger Tubes For Short Term Measurements: Oxygen 5%/C

    Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Oxygen 5%/C).

    The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

    Application Range:

    Standard Measuring Range: 5 to 23 vol. %
    Number of Strokes n: 1
    Time for Measurement: approx. 1 min
    Standard Deviation: ± 10 to 15 %
    Colour Change: blue black to white

    Ambient Operating Conditions:

    Temperature: 5 to 50 °C
    Absolute Humidity 0 to 40 mg H2O / L

    Reaction Principle:

    a) O2 + TiCI3 ~> TiIV-compound+ HCl b) Adsorption of HCl by silica gel

    Cross Sensitivity:

    Carbon dioxide, carbon monoxide, solvent vapors, halogenated hydro carbons and N2O do not affect the indication..

    For more information on Dräger-Tubes click the image below.

    To view our range of Dräger pumps please click below.
