Description

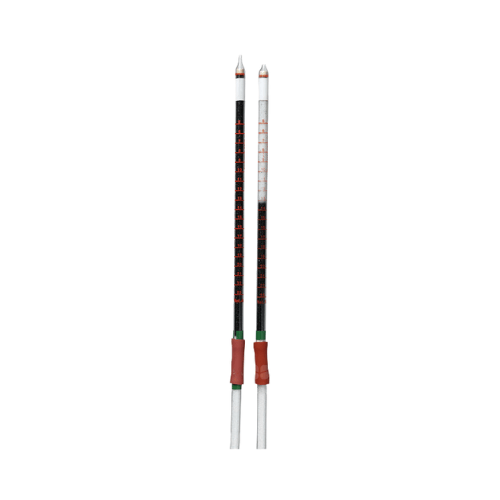

Dräger Tubes For Short Term Measurements: Oxygen 5%/B
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Oxygen 5%/B).
The tubes come in a pack of 8 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | 5 to 23 vol. % |
| Number of Strokes n: | 1 |
| Time for Measurement: | approx. 1 min |
| Standard Deviation: | ± 5 to 10 % |
| Colour Change: | blue black to white |
Ambient Operating Conditions:
| Temperature: | 0 to 50 °C |
| Absolute Humidity | 3 to 20 mg/L |
Reaction Principle:
a) O2 + TiCI3 ~> TiIV-compound + HCl b) Adsorption of HCl by silica gel
Cross Sensitivity:
Carbon dioxide, carbon monoxide, solvent vapors, halogenated hydrocarbons and N2O do not affect the indication..
