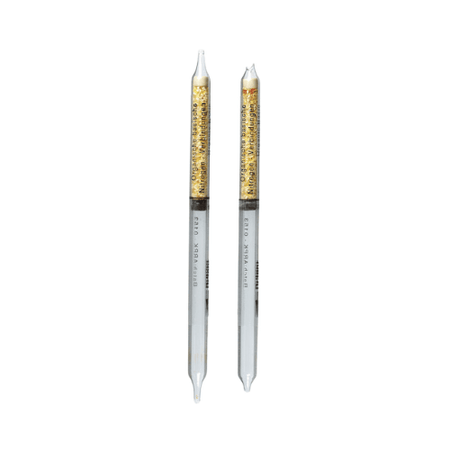

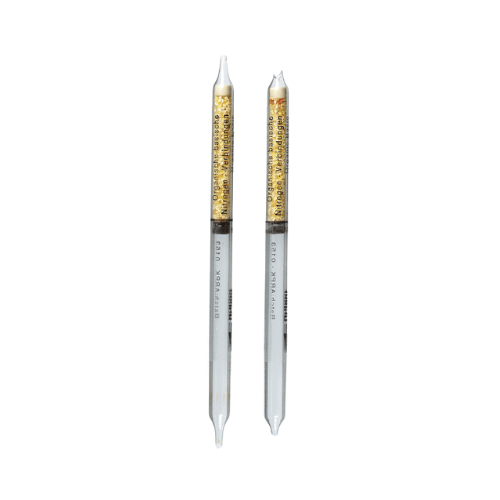

Dräger Short Term Detection Tubes - Organic Basic Nitrogen Compounds (Pack of 10)

Dräger Short Term Detection Tubes - Organic Basic Nitrogen Compounds (Pack of 10)

CH25903
  • £98.46


Dräger Tubes For Short Term Measurements: Organic Basic Nitrogen Compounds

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Organic Basic Nitrogen Compounds).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

Application Range:

Standard Measuring Range: 1 mg/m3 corresponds to a discoloration of 1 to 2 mm in length.
Number of Strokes n: 8
Time for Measurement: approx. 1.5 min
Standard Deviation: ± 50 %
Colour Change: yellow to orange red

Ambient Operating Conditions:

Temperature: 0 to 40 °C
Absolute Humidity < 50 mg H2O / L

Reaction Principle:

NR3 + KBiI4 ~> orange red reaction product

Cross Sensitivity:

Various organic basic nitrogen compounds are indicated. It is impossible to differentiate between them..

For more information on Dräger-Tubes click the image below.

To view our range of Dräger pumps please click below.
