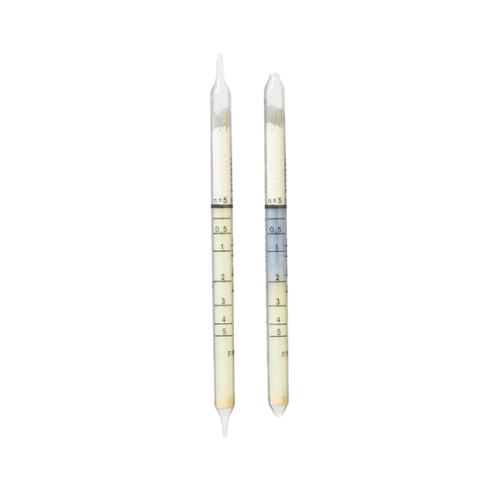

Dräger Short Term Detection Tubes - Nitrogen Dioxide 0.1/a (Pack of 10)

Dräger Short Term Detection Tubes - Nitrogen Dioxide 0.1/a (Pack of 10)

8103631
  • £54.80


Dräger Tubes For Short Term Measurements: Nitrogen Dioxide 0.1/a

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Nitrogen Dioxide 0.1/a).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

Application Range:

Standard Measuring Range: 5 to 30 ppm / 0.1 to 5 ppm
Number of Strokes n: 1
Time for Measurement: approx. 15 s / approx. 75 s
Standard Deviation: ± 10 to 15 %
Colour Change: grey-green to blue-grey

Ambient Operating Conditions:

Temperature: 0 to 40 °C
Absolute Humidity < 40 mg H2O / L

Reaction Principle:

NO2 + diphenylbenzidine ä blue-grey reaction product

Cross Sensitivity:

Chlorine and ozone are also indicated, but with different sensitivities. Nitrogen monoxide is not indicated. NO2 concentrations above 400 ppm result in the display bleaching out..

For more information on Dräger-Tubes click the image below.

To view our range of Dräger pumps please click below.
