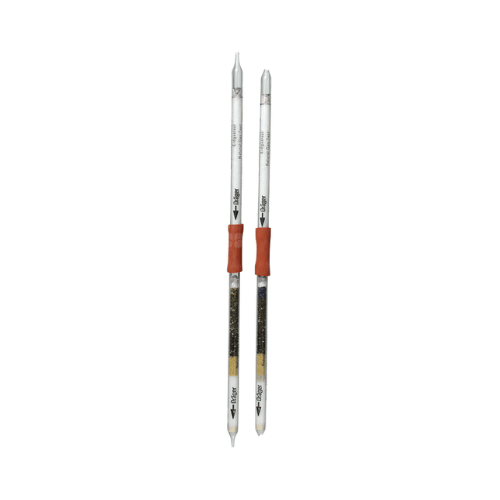

Dräger Tube -Natural Gas Test (5)

DrägerSKU: CH20001

Sale price£48.55


Dräger Tubes For Short Term Measurements: Natural Gas Test

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Natural Gas Test).

The tubes come in a pack of 5 tubes and have a shelf life of 2 years.

Part no Dräger Tube Substance Measurement Range
CH20001 Natural Gas Test (5) Methane Qualitative
Natural Gas Qualitative
Propane Qualitative

Application Range:

Standard Measuring Range: Qualitative determination of natural gas
Number of Strokes n: 5
Time for Measurement: approx. 100 s
Standard Deviation: 0.5
Colour Change: white to brown green to grey violet

Ambient Operating Conditions:

Temperature: 0 to 50 °C
Absolute Humidity max. 40 mg H2O / L

Reaction Principle:

a) CH4 + KMnO4 + H2S2O7 ~> CO b) CO + I2O5 ~> I2 + CO2

Cross Sensitivity:

Due to the reaction principle a number of other organic compounds such as propane and butane are indicated as well. Carbon monoxide is also indicated. It is not possible to differentiate between different compounds..
