Dräger Tube -Hydrogen Sulphide 2/b

DrägerSKU: 8101961

Sale price£65.38

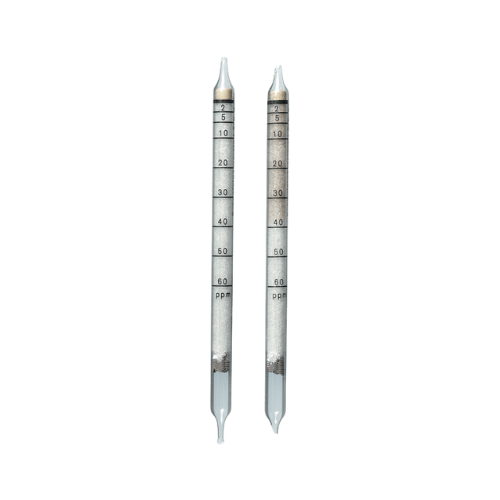

Dräger Tubes For Short Term Measurements: Hydrogen Sulfide 2/b

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Hydrogen Sulfide 2/b).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

Application Range:

Standard Measuring Range: 2 to 60 ppm
Number of Strokes n: 1
Time for Measurement: approx. 30 s
Standard Deviation: ± 5 to 10 %

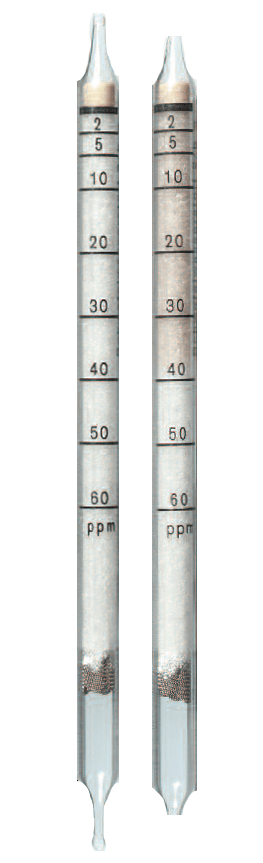

Colour Change: white to pale brown

Ambient Operating Conditions:

Temperature: 0 to 40 °C
Absolute Humidity max. 20 mg H2O / L

Reaction Principle:

H2S + Pb2+ ~> PbS + 2 H+

Cross Sensitivity:

Hydrochloric acid, mercaptan and sulfur dioxide in the TLV range does not interfere.

    Extension of the Measuring Range

    Using n = 2, divide the reading by 2; the measuring range will be 1 to 30 ppm..

    For more information on Dräger-Tubes click the image below.

    To view our range of Dräger pumps please click below.
