Description

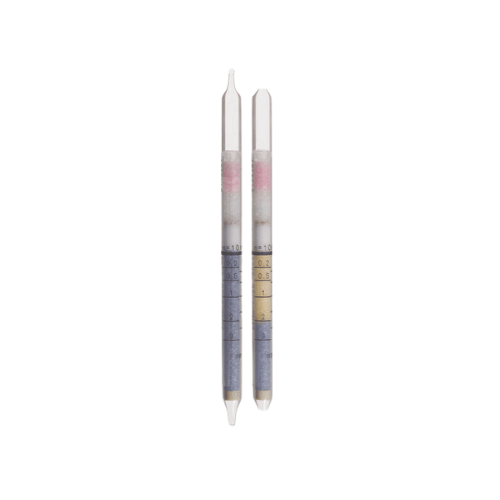

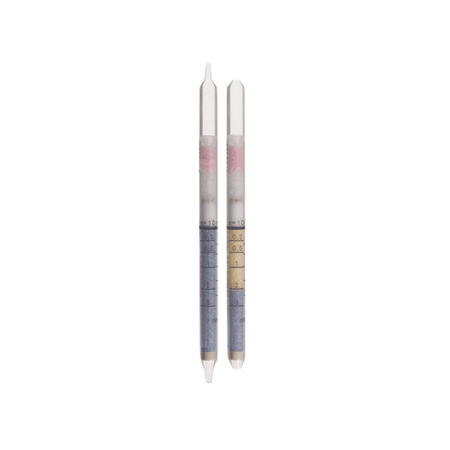

Dräger Tubes For Short Term Measurements: Hydrochloric Acid 0.2/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Hydrochloric Acid 0.2/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | 0.2 to 3 ppm / 3 to 20 ppm |
| Number of Strokes n: | 10 |
| Time for Measurement: | approx. 2 min / 0.4 min |
| Standard Deviation: | ± 10 to 15 % |
| Colour Change: | blue to yellow |
Ambient Operating Conditions:
| Temperature: | 5 to 40 °C |
| Absolute Humidity | ? 15 mg H2O / L |
Reaction Principle:
HCl + bromophenol blue ~> yellow reaction product
Cross Sensitivity:
No interference on the reading of 10 ppm H2S and 2 ppm SO2. Other acid gases are also indicated, however, with differing sensitivity. Chlorine changes the indicating layer to grey. If chlorine occurs simultaneously, HCl readings will be higher..
