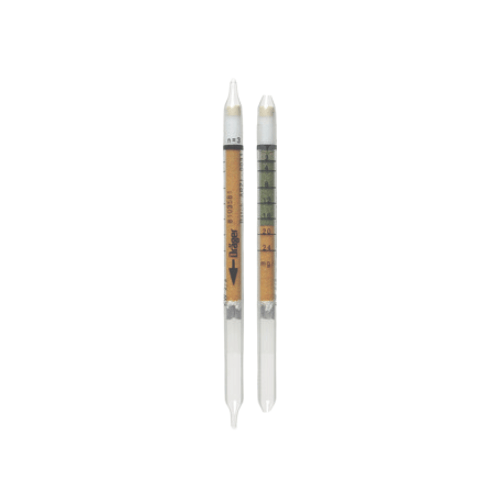

Dräger Short Term Detection Tubes - Hydrocarbons 2/a (Pack of 10)

Dräger Short Term Detection Tubes - Hydrocarbons 2/a (Pack of 10)

8103581
  • £58.50


Dräger Tubes For Short Term Measurements: Hydrocarbons 2/a

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Hydrocarbons 2/a).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

Application Range:

Standard Measuring Range: 2 to 24 mg / L
Number of Strokes n: 3
Time for Measurement: approx. 5 min
Standard Deviation: ± 25 %
Colour Change: orange to brown-green

Ambient Operating Conditions:

Temperature: 0 to 40 °C
Absolute Humidity 1 to 25 mg H2O / L

Reaction Principle:

C8H18 + Cr6+ ~> Cr3+ +div. oxidation products

Cross Sensitivity:

The information regarding cross sensitivity only applies for measurements with a maximum of 3 strokes. Paraffinic and aromatic hydrocarbons are indicated as a whole. Differentiation is not possible. Aromatic hydrocarbons (benzene, toluene) are also displayed. Their concentration in the mixture should not exceed 20%. There is no fault caused on the display by < 1000 ppm CO..

For more information on Dräger-Tubes click the image below.

To view our range of Dräger pumps please click below.
