Description

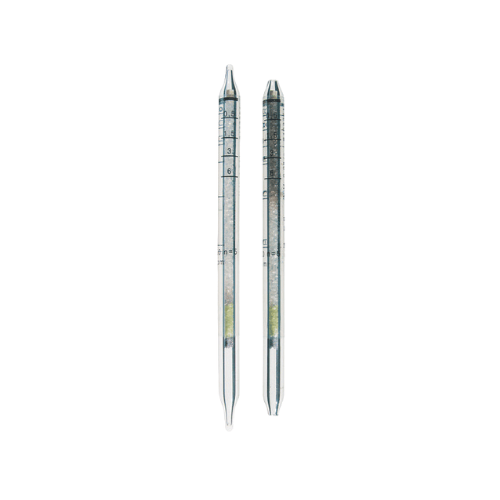

Dräger Tubes For Short Term Measurements: Hydrazine 0.01/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Hydrazine 0.01/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
Standard Measuring Range: | 0.01 to 0.4 ppm / 0.5 to 6 ppm |
Number of Strokes n: | 5 |
Time for Measurement: | approx. 20 to 30 min /approx. 1 min |
Standard Deviation: | ± 20 to 25 % |

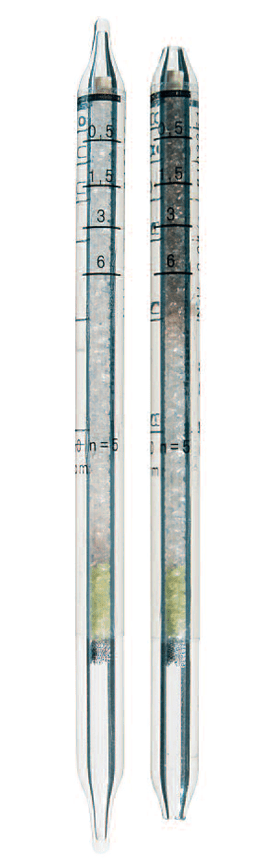

Colour Change: | pale grey to grey-brown |
Ambient Operating Conditions:
Temperature: | 10 to 30 °C |
Absolute Humidity | 1 to 20 mg H2O / L |
Reaction Principle:
N2H4 + Silver Salt ~> grey-brown reaction product
Cross Sensitivity:
1.1-Dimethylhydrazin and Monomethylhydrazine are shown with the same sensitivity (Standard Deviation ± 50 %) 5 ppm Ammonia at 100 strokes result in a measurement of approx. 0.01 ppm Hydrazine. At 5 strokes, Ammonia will also not be shown in high concentrations..
