Description

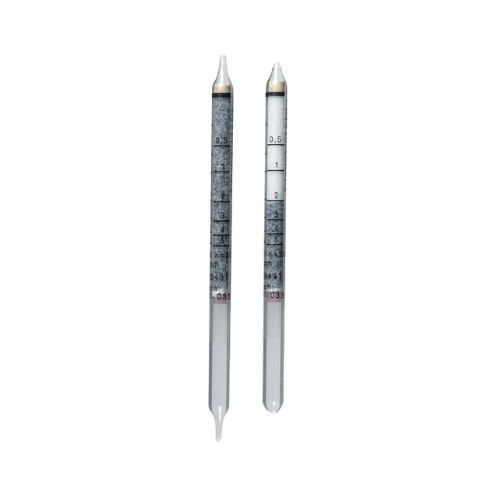

Dräger Tubes For Short Term Measurements: Sulfur Dioxide 0.5/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Sulfur Dioxide 0.5/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
Use in MultiTest med. Int.
| Standard Measuring Range: | 1 to 25 ppm / 0.25 to 1 ppm |
| Test Volume: | 1 L / 2 L |
| Flow Rate: | 0.2 L / 0.2 L / min |
| Time for Measurement: | 5 min / 10 min |
| Standard Deviation: | ± 25 % |
| Colour Change: | greyblue to white |
Ambient Operating Conditions:
| Temperature: | 15 to 30 °C |
| Absolute Humidity: | max. 20 mg H2O / L |
| Pressure: | The tube may only be used for depressurized compressed air |
Reaction Principle:
SO2 + I2 + 2 H2O ~ Starch ~> H2SO4 + 2 HI
Cross Sensitivity:
Hydrogen sulfide is indicated as well but with different sensitivity. Nitrogen dioxide will shorten the reading.
Evaluation:
Measuring range 1 to 25 ppm: Reading on the (n=10) scale = ppm Measuring range 0.25 to 1 ppm: Reading on the (n= 20) scale x 0.5 = ppm SO2 (applies only for scale range 0.5 to 2 ppm).
