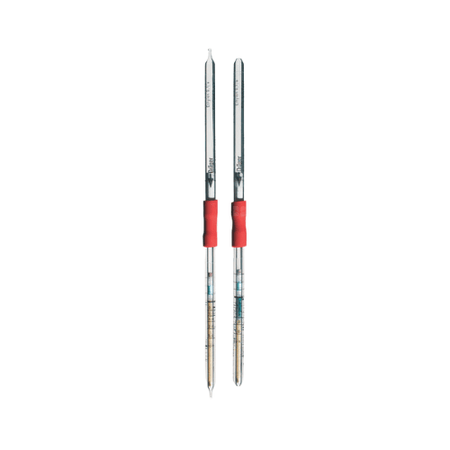

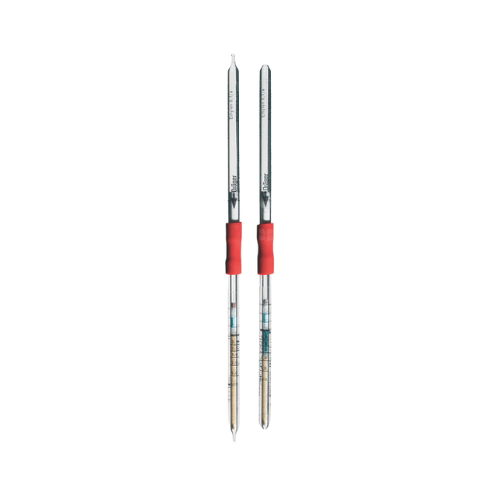

Dräger Tubes For Short Term Measurements: Ethylene 0.1/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Ethylene 0.1/a).
The tubes come in a pack of 5 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | 0.2 to 5 ppm |
| Number of Strokes n: | 20 |
| Time for Measurement: | approx. 30 min |
| Standard Deviation: | ± 15 to 30 % |
| Colour Change: | pale yellow to greyish blue |
Ambient Operating Conditions:
| Temperature: | 10 to 40 °C |
| Absolute Humidity | 5 to 20 mg H2O / L |
Reaction Principle:
CH2=CH2 + Pd-Molybdate complex ~> blue reaction product
Cross Sensitivity:
Other similar compounds are indicated in addition to ethylene, e.g.: 100 ppm butadiene result in a reading of 1 ppm 50 ppm butylene result in a reading of 1 ppm 5 ppm propylene result in a reading of 1 ppm 20 ppm hydrogen sulfide result in a reading of 2 ppm 25 ppm CO change the indicating layer to a greyish blue..
