Description

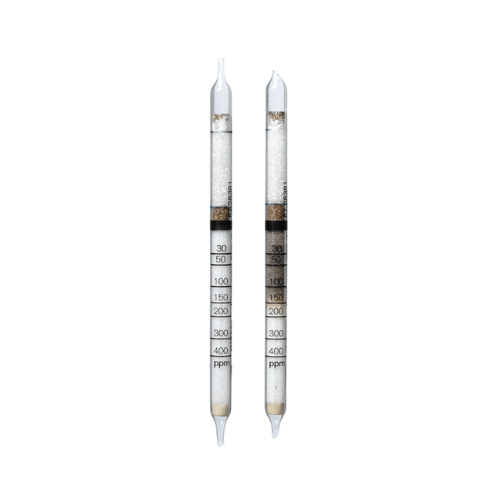

Dräger Tubes For Short Term Measurements: Ethyl Benzene 30/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Ethyl Benzene 30/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
Application Range:
| Standard Measuring Range: | 30 to 400 ppm |
| Number of Strokes n: | 6 |
| Time for Measurement: | approx. 2 min |
| Standard Deviation: | ± 10 to 15 % |
| Colour Change: | white to brown |
Ambient Operating Conditions:
| Temperature: | 10 to 30 °C |
| Absolute Humidity | 5 to 12 mg H2O / L |
Reaction Principle:
C6H5 - C2H5 + I2O5 ~> I2
Cross Sensitivity:
Many petroleum hydrocarbons and aromatics are indicated, but with different sensitivities. It is impossible to differentiate between them.
Extension of the Measuring Range
Using n = 4, multiply the reading by 1.5; the measuring range will be 45 to 600 ppm..
