Description

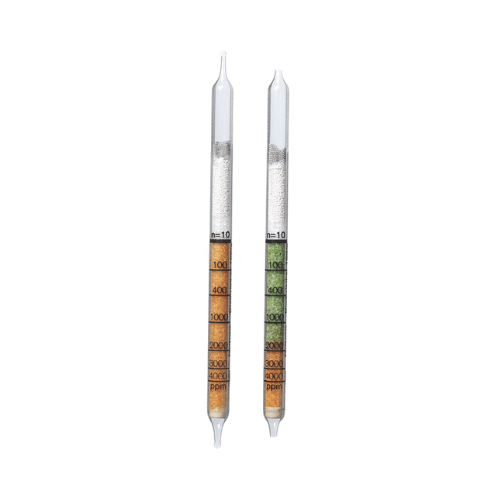

Dräger Tubes For Short Term Measurements: Diethyl Ether 100/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Diethyl Ether 100/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
| Part no | Dräger Tube | Substance | Measurement Range |
| 6730501 | Diethyl Ether 100/a | Dibutylether | 200 to 8000 ppm |
| Diethyl Ether | 100 to 4000 ppm | ||
| Dipropyl ether | 100/a 100 to 4000 ppm | ||
| Ether | 100 to 4000 ppm | ||
| Isopropyl Ether | 100 to 4000 ppm |
Application Range:
| Standard Measuring Range: | 100 to 4,000 ppm |
| Number of Strokes n: | 10 |
| Time for Measurement: | approx. 3 min |
| Standard Deviation: | ± 15 to 20 % |
| Colour Change: | orange to green brown |
Ambient Operating Conditions:
| Temperature: | 15 to 40 °C |
| Absolute Humidity | 3 to 15 mg H2O / L |
Reaction Principle:
C2H5-O-C2H5 + CrVI ~> CrIII + various oxidation products
Cross Sensitivity:
Many petroleum hydrocarbons, alcohols, aromatics and esters are indicat ed as well, but with different sensitivities. It is not possible to differentiate between them..
