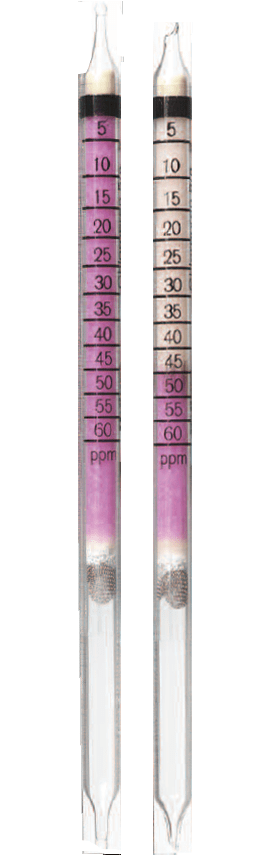

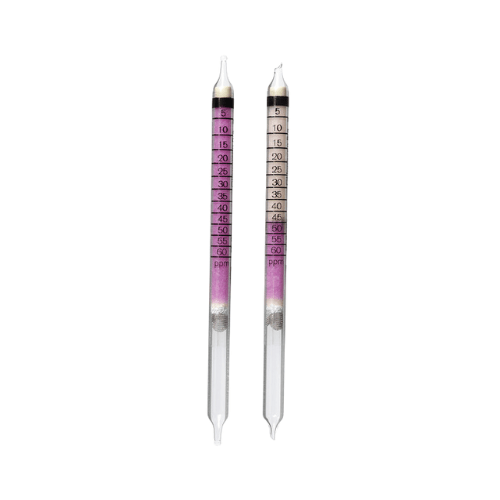

Dräger Tubes For Short Term Measurements: Chloroprene 5/a
Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Chloroprene 5/a).
The tubes come in a pack of 10 tubes and have a shelf life of 2 years.
| Part no | Dräger Tube | Substance | Measurement Range |
| 6718901 | Chloroprene 5/a | Butadiene | 0.7 to 8.5 ppm |
| 2-Chloro-1,3-butadiene | 5 to 90 ppm | ||
| Chloroprene | 5 to 90 ppm | ||
| 1-Hexene | 5 to 60 ppm | ||
| Isoprene | 10 to 120 ppm | ||
| 1-octene | 0.02 to 1 mg/litre |
Application Range:
| Standard Measuring Range: | 5 to 60 ppm |
| Number of Strokes n: | 3 + 3 desorption strokes in clean air. |
| Time for Measurement: | approx. 3 min |
| Standard Deviation: | ± 10 to 15 % |
| Colour Change: | violet to yellow brown |
Ambient Operating Conditions:
| Temperature: | 10 to 30 °C |
| Absolute Humidity | 3 to 15 mg H2O / |
Reaction Principle:
CH2=CH-CCI=CH2 + MnO4 – MnIV + various oxidation products
Cross Sensitivity:
Many other organic compounds with C=C double bonds are indicated as well, but with different sensitivities. It is impossible to differentiate them. It is impossible to measure chloroprene in the presence of dialkyl sulfides.
