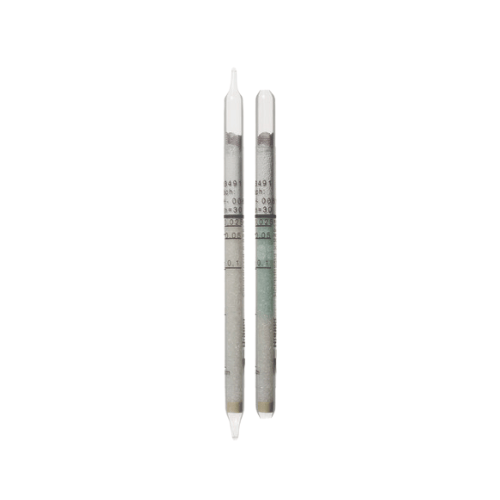

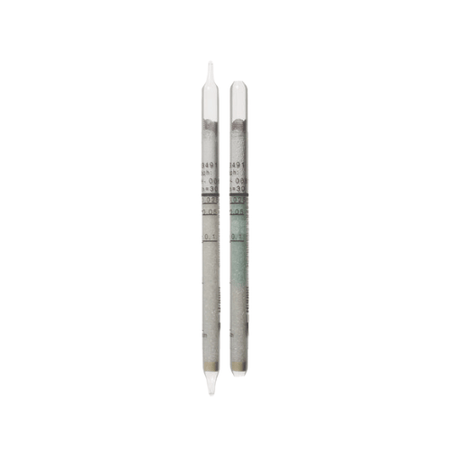

Dräger Tube -Chlorine Dioxide 0.025/a

DrägerSKU: 8103491

Price:
Sale price£78.21

Description

Dräger Tubes For Short Term Measurements: Chlorine Dioxide 0.025/a

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Chlorine Dioxide 0.025/a).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

Application Range:

Standard Measuring Range: 0.1 to 1 ppm / 0.025 to 0.1 ppm
Number of Strokes n: 10
Time for Measurement: approx. 2.5 min / approx. 7.5 min.
Standard Deviation: ± 10 to 15 %
Colour Change: light grey to light green

Ambient Operating Conditions:

Temperature: 0 to 50 °C
Absolute Humidity ? 50 mg / L

Reaction Principle:

ClO2 + o-Tolidine ~> light green reaction product

Cross Sensitivity:

The following values are not displayed: 1 ppm Cl2, 10 ppm H2S, 1 ppm SO2, 10 ppm methyl mercaptane. 1 ppm bromide is not displayed at a stroke count of n = 10, at n = 30 there is a discoloration of approx. 10 mm..

For more information on Dräger-Tubes click the image below.

To view our range of Dräger pumps please click below.
