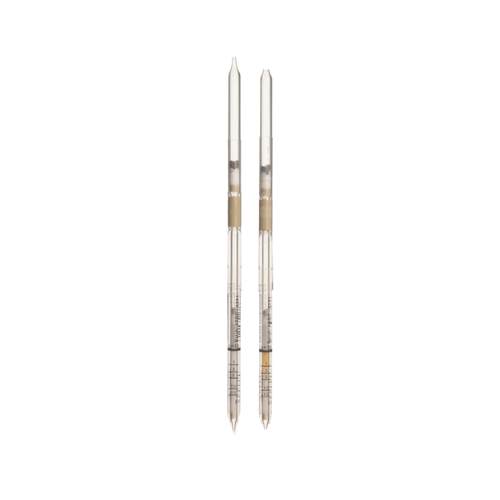

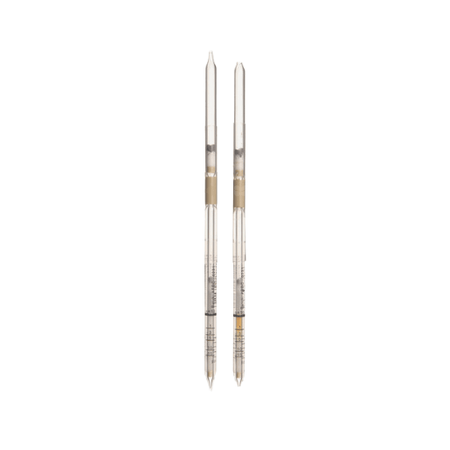

Dräger Tube -Carbon Tetrachloride 1/a

DrägerSKU: 8101021

Sale price£83.79


Dräger Tubes For Short Term Measurements: Carbon Tetrachloride 1/a

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Carbon Tetrachloride 1/a).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

Part no Dräger Tube Substance Measurement Range
8101021 Carbon Tetrachloride 1/a Carbon Tetrachloride 1 to 15 ppm
Chloropicrine 1 to 15 ppm
Trichloronitromethane 1 to 15 ppm

Application Range:

Standard Measuring Range: 1 to 15 ppm / 10 to 50 pmm
Number of Strokes n: 10
Time for Measurement: approx. 6 min / 3 min
Standard Deviation: ± 15 to 20 %
Colour Change: white to yellow

Ambient Operating Conditions:

Temperature: 15 to 30 °C
Absolute Humidity 3 to 15 mg H2O / L

Reaction Principle:

a) CCI4 + H2S2O7 ~> COCI2 b) COCI2 + Aromatic nitrogen compounds ~> yellow reaction product

Cross Sensitivity:

Chloropicrin and phosgene are indicated with the same sensitivity. It is impossible to measure carbon tetrachloride in the presence of chloropicrin and phosgene. No interference from: 1 ppm chlorine 5 ppm hydrochloric acid 20 ppm methyl bromide 1,000 ppm acetone.
