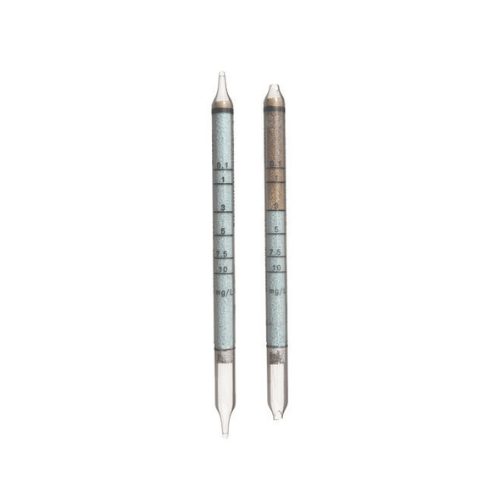

Dräger Short Term Detection Tubes - Carbon Disulfide 30/a (Pack of 10)

Dräger Short Term Detection Tubes - Carbon Disulfide 30/a (Pack of 10)

CH23201
  • £62.58


Dräger Tubes For Short Term Measurements: Carbon Disulfide 30/a

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Carbon Disulfide 30/a).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

Application Range:

Standard Measuring Range: 0.1 to 10 mg/L
Number of Strokes n: 6
Time for Measurement: approx. 1 min
Standard Deviation: ± 15 to 20 %
Colour Change: pale blue to brown

Ambient Operating Conditions:

Temperature: 0 to 40 °C
Absolute Humidity < 30 mg H2O / L

Reaction Principle:

2 CS2 + 4 NHR2 + Cu2+ ~%gt; Cu(SCSNR2)2 + 2 NH2R2+

Cross Sensitivity:

Hydrogen sulfide is indicated, producing a pale green discoloration. It is impossible to measure carbon disulfide in the presence of hydrogen sulfide..

For more information on Dräger-Tubes click the image below.

To view our range of Dräger pumps please click below.
