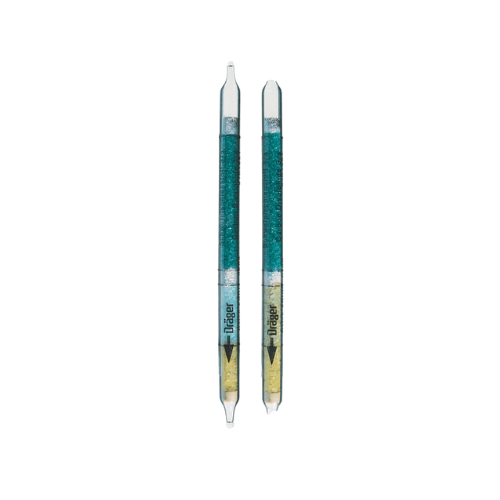

Dräger Short Term Detection Tubes - Carbon Disulfide 3/a (Pack of 10)

Dräger Short Term Detection Tubes - Carbon Disulfide 3/a (Pack of 10)

8101891
  • £58.11


Dräger Tubes For Short Term Measurements: Carbon Disulfide 3/a

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Carbon Disulfide 3/a).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

Application Range:

Standard Measuring Range: 3 to 95 ppm
Number of Strokes n: 15 to 1
Time for Measurement: max. 2 min
Standard Deviation: ± 30 %
Colour Change: pale blue to yellow green

Ambient Operating Conditions:

Temperature: 0 to 40 °C
Absolute Humidity < 30 mg H2O / L

Reaction Principle:

2 CS2 + 4 NHR2 + Cu2+ ~> Cu (SCSNR2)2 + 2 NH2R2+

Cross Sensitivity:

Hydrogen sulfide in the TLV range is retained in the pre-layer and does not interfere..
