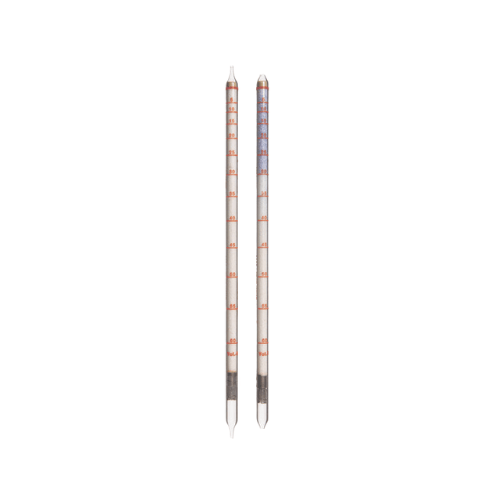

Dräger Tube -Carbon Dioxide 5%/a

DrägerSKU: CH20301

Sale price£95.43


Dräger Tubes For Short Term Measurements: Carbon Dioxide 5%/A

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Carbon Dioxide 5%/A).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

Application Range:

Standard Measuring Range: 5 to 60 vol. %
Number of Strokes n: 1
Time for Measurement: approx. 2 min
Standard Deviation: ± 10 to 15 %
Colour Change: white to violet

Ambient Operating Conditions:

Temperature: 0 to 40 °C
Absolute Humidity max. 50 mg H2O / L

Reaction Principle:

CO2 + N2H4 ~> NH2-NH-COOH

Cross Sensitivity:

Hydrogen sulphide is not indicated near the limit value. Sulfur dioxide is indicated with comparable concentration range, however, with three times less the sensitivity..

For more information on Dräger-Tubes click the image below.

To view our range of Dräger pumps please click below.
