Dräger Tube -Carbon Dioxide 0.5%/a

DrägerSKU: CH31401

Sale price£61.45

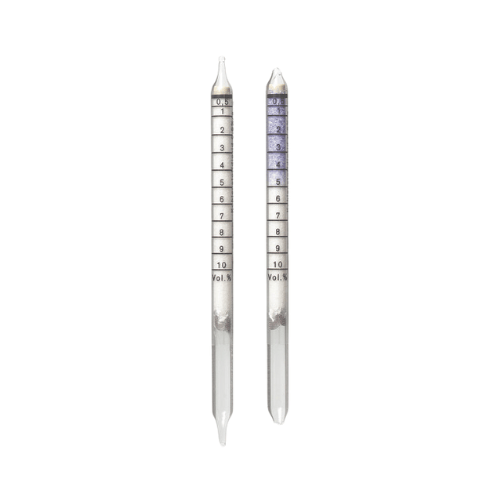

Dräger Tubes For Short Term Measurements: Carbon Dioxide 0.5%/a

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for (Carbon Dioxide 0.5%/a).

The tubes come in a pack of 10 tubes and have a shelf life of 2 years.

Application Range:

Standard Measuring Range: 0.5 to 10 vol. %
Number of Strokes n: 1
Time for Measurement: approx. 30 s
Standard Deviation: ± 5 to 10 %
Colour Change: white to violet

Ambient Operating Conditions:

Temperature: 0 to 40 °C
Absolute Humidity max. 50 mg H2O / L

Reaction Principle:

CO2 + amine ~> violet reaction product

Cross Sensitivity:

Hydrogen sulfide in the TLV range does not interfere. In a range comparable to the calibrated range for carbon dioxide, sulfur dioxide is indicated. The sulfur dioxide sensitivity is approximately 1/3 (e.g. 3 vol. % sulfur dioxide gives an indication of 1 vol. %)..

For more information on Dräger-Tubes click the image below.

To view our range of Dräger pumps please click below.
