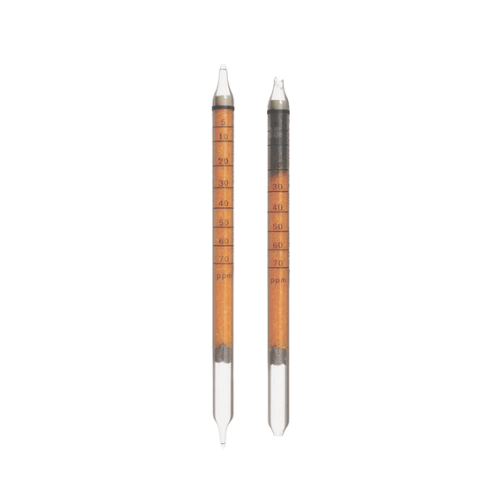

Dräger Tube -Ammonia 5/a

Dräger Tube -Ammonia 5/a

CH20501
  • £61.04


Dräger Tubes For Short Term Measurements: Ammonia (5/a)

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for Ammonia (5/a)

The tubes come in a pack of 5 tubes and have a shelf life of 2 years.

Part no Dräger Tube Substance Measurement Range
CH20501 Ammonia 5/a Ammonia 1 to 600 ppm
    1,1-Dimethylhydrazine Qualitative



Application Range:

Standard Measuring Range: 5 to 70 ppm     / 50 to 600 ppm
Number of Strokes n:  10                    / 1
Time for Measurement: approx. 60 s.   / 10s.
Standard Deviation: ± 10 to 15 %
Colour Change: yellow to blue



Ambient Operating Conditions:

Temperature: 10 to 50°C
Absolute Humidity < 20 mg H2O/L



Reaction Principle:

NH3 + pH indicator ~> blue reaction product

Cross Sensitivity:

Other basic substances such as e.g. organic amines are indicated as well.

The indication is not affected by:

  • 300 ppm nitrous fumes
  • 2,000 ppm sulfur dioxide
  • 2,000 ppm hydrogen sulfide
