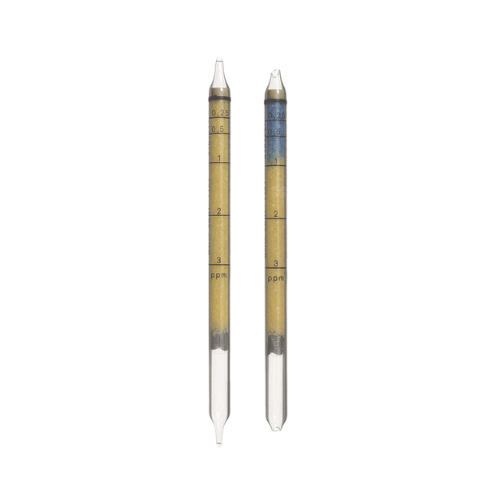

Dräger Tube -Ammonia 0.25./a

SKU: 8101711
£91.51 GBP
Contact ISS
Need help or have a query? Ask ISS.
Contact us:
e: sales@isscomplete
t:+44 28 37 539 950

Dräger Tubes For Short Term Measurements: Ammonia (0.25/a)

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for Ammonia (0.25/a)

The tubes come in a pack of 5 tubes and have a shelf life of 2 years.

Part no Dräger Tube Substance Measurement Range
8101711 Ammonia 0.25./a Ammonia 0.05 to 30 ppm
Azirdine 0.25 to 3 ppm
Cyclohexylamine 0.45 to 5ppm
1,2-Diaminoethane 0.5 to 12 ppm
2-Diethylaminoethanol 0.5 to 10 ppm
Diethylenetriamine Qualitative
Diisopropylamine 0.5 to 6 ppm
Dimethylamine 0.25 to 6 ppm
N,n-Dimethylaminopropylamine Qualitative
Dimethylethanolamine Qualitative
Dimethylethylamine 0.2 to 2 ppm
1,1-Dimethylhydrazine Qualitative
Dimethylisopropylamine 1 to 12 ppm
Dipropylamine 0.5 to 5.5 ppm
Ethanolamine 0.5 to 6 ppm
Ethylenediamine 0.5 to12 ppm
Ethyleneimine 0.25 to 3 ppm
Fufurylamine 0.25 to 3 ppm
Hexamethylene Diamine Qualitative
2-Methylaminoethanol Qualitative
N-Methyldiethanolamine Qualitative
Morpholine Qualitative
Triethylamine 0.25 to 3 ppm
Triethylenetetramine Qualitative
Trimethylamine 0.25 to 3 ppm

Application Range:

Standard Measuring Range: 0.25 to 3 ppm
Number of Strokes n: 10
Time for Measurement: approx. 1 min.
Standard Deviation: ± 10 to 15 %

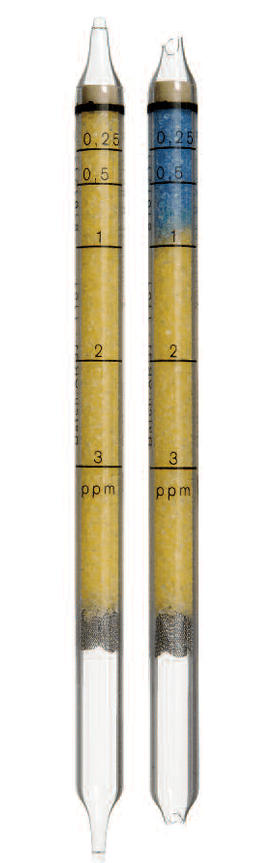

Colour Change: yellow to blue

Ambient Operating Conditions:

Temperature: 10 to 50°C
Absolute Humidity < 20 mg H2O/L

Reaction Principle:

NH3 + pH indicator ~> blue reaction product

Cross Sensitivity:

Other basic substances such as e.g. organic amines are indicated as well, but with different sensitivity.
