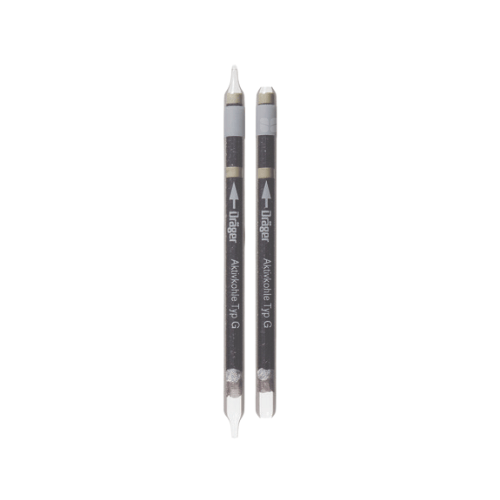

Dräger 'G' Type Length: 125mm Diameter:7mm

DrägerSKU: 6728831

Sale price£65.56


Dräger Sampling Tubes:Activated Charcoal Tube Type G

Dräger Safety offer a massive range of short-term gas detection tubes for the measurement of various gases. This particular set of tubes is for Activated Charcoal Tube Type G

The tubes come in a pack of 1 tubes and have a shelf life of 2 years.

Application Range:

Adsorbate: organic compounds which adsorb on activated charcoal
Sorption agent: coconut shell charcoal
Adsorption layer: 750 mg
Backup layer: 250 mg
Tube length: 125 mm
Outside diameter: 7 mm
Inside diameter: 5 mm

Advice for sample-taking:

Because of the large quantity of activated charcoal in the sampling layer these activated charcoal tubes are specially suitable for the sampling of organic compunds which are present in high concentrations in the air sample. For example, the analysis of exhaust air for the determination of the emission of a harmful substance. After sampling the tube must be sealed with the polyethylene supplied caps

Note concerning the analysis:

The enriched volatile organic compounds are analysed in accordance with the procedures recommended by BGIA, DFG, NIOSH, OSHA and HSE. For evaluation of the sampling tubes and systems please contact Dräger.

For more information on Dräger-Tubes click the image below.

To view our range of Dräger pumps please click below.
