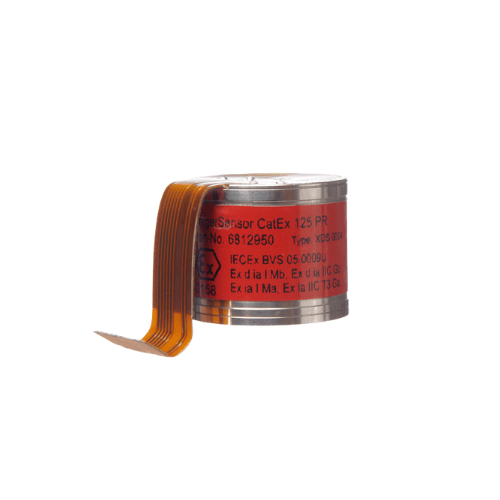

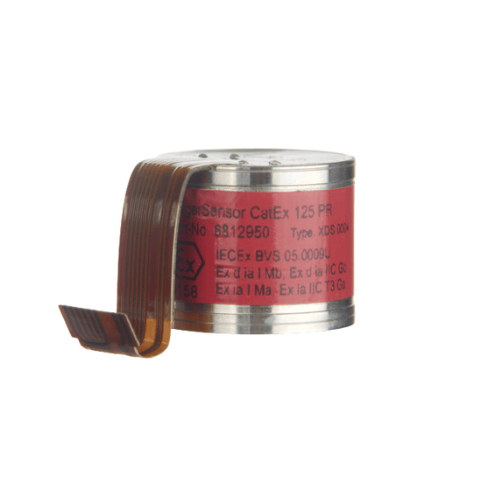

    Dräger CatEx 125 PR Sensor

    Dräger CatEx 125 PR Sensor

    6812950
    • £225.32


    Dräger CatEx 125 PR Sensor

    Measuring Combustible Gases And Vapours With The Ambient Air
    Range

    0–100% LEL

    0-100vol% CH4

    Resolution

    1.0% LEL for the measuring range 0-100% LEL

    1vol% for the measuring range 0-100vol% CH4

    Response time at 20 °C With Methane In Air

    t0...50 at 20 °C ≤7 seconds
    t0...90 at 20 °C ≤17 seconds

    Response time for X-am 8000
    t0...50 at 20 °C ≤6 seconds
    t0...90 at 20 °C ≤9 seconds

    Typical values for X-am 5000
    t0...90 at 20 °C 10 seconds

    Typical values for X-am 2000
    t0...90 at 20 °C 12 seconds

    Notes:

    3 year warranty

    Expected Life Time >48 Months

    6 Month Calibration Interval

    Suitable For:

    X-am 2000, X-am 2500, X-am 5000, X-am 5600, X-am 8000

    Note existing instruments may require a firmware upgrade to use this sensor.  Please contact our sales team for more information.



    Dräger CatEx 125 PR Sensor

    Their own design

    Dräger have developed the sensors with their own engineering knowledge. In this way, they can assure their quality and they know the measurements are accurate. This allows them to be fully utilised in combination with their full line of in-house developed Dräger gas detectors.

    Durable and resistant against sensor poisons

    Hydrogen sulphide and silicone are known catalytic poisons that may be present in environments where explosive gases can develop. Thanks to a new pellistor composition, the sensors are highly resistant to poisoning from these substances. The sensors are also lead-free and thereby adhere to Directive 2002/95/EG (Restriction of Hazardous Substances). The high resistance to poisoning leads to extraordinarily stability over the long-term and that ensures low operational costs.

    Vapour sensitivity

    Unknown gas hazards and higher hydrocarbons pose a particular challenge to the display sensitivity of catalytic sensors. The new CatEx PR sensors distinguish themselves through their sensitivity. The detection of all hydrocarbons (from methane to nonane) has been certified in a measurement performance certificate for the device series X-am 1/2/5000 and X-am 7000.

    Rapid response times

    A rapid warning for explosive gases and vapours is vital. The CatEx PR sensors' fast response times minimise the timespan between danger and warning.

    From the LEL to 100 vol. %

    Our catalytic sensors are suitable for measurements from the lower explosion limit to 100 vol. %.

    For more information please click PDF documents below.

    Dräger Catalytic Ex-Sensors PDF

    Dräger Catalytic Ex-Sensor Instruction For Use
