SPXCDULNRFD Honeywell Sensepoint XCD RFD Transmitter,4 to 20 mA output,cCSAus/INMETRO,3 x 3/4" NPT entries, LM25

SKU: SPXCDULNRFD
£1,046.00 GBP

Contact ISS

Need help or have a query? Ask ISS.
Contact us:
e: sales@isscomplete
t:+44 28 37 539 950

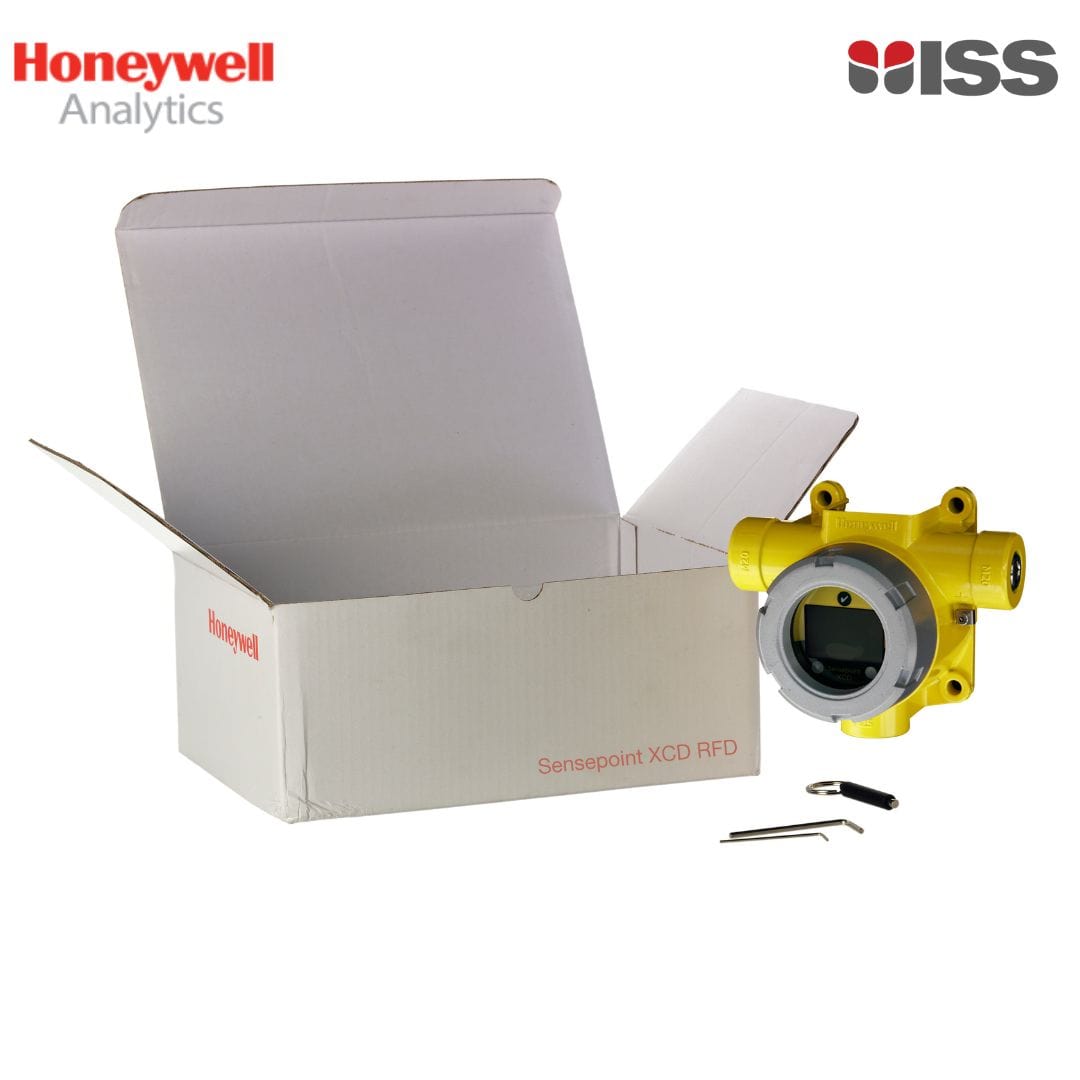

Honeywell Sensepoint XCD RFD Transmitter. Contains 4 to 20 mA output and 3 x 3/4" NPT entries.

Standard: cCSAus/INMETRO

Material: LM25

P/N: SPXCDULNRFD

The Sensepoint XCD RFD Transmitter is purpose-built for compatibility with remotely mounted flammable gas sensors, ensuring precise monitoring in applications where sensor placement is separate from the transmitter. This configuration is optimised for environments where the sensor must be positioned remotely from the transmitter, particularly in locations with elevated temperatures up to 150°C (302°F) or areas that are challenging to access. The transmitter can be mounted at a suitable location away from this area where it is easy to access, view its display, and interact with via the user interface.

Reliable Detection:

  • Compatible with Honeywell Analytics’ proven catalytic bead flammable gas sensors
  • Equipped with thermally matched beads, the high temperature gas sensors provide exceptional accuracy and stability, allowing for reliable detection at very low alarm thresholds.
  • Gas sensors use long life, poison resistant beads as standard, reducing ongoing cost of ownership

Easy To Use:

  • Easy to read tri-colour backlit display with digits, bar graph and icons
  • Fully configurable via non-intrusive magnetic switches
  • This transmitter offers a configurable 4-20 mA output, allowing selection between sink or source modes to ensure flexible integration with various control systems.
  • The transmitter automatically inhibits alarms during maintenance to prevent false activations.

Cost-Effective:

  • The Sensepoint XCD features a standardised transmitter platform capable of detecting the entire range of flammable gases
  • Minimizes expenses associated with training
  • Reduced spares and stock costs
  • The non-intrusive design allows single-person operation, lowering maintenance expenses.
  • Optional Sensepoint XCD plug-in sensor reduces maintenance time further
