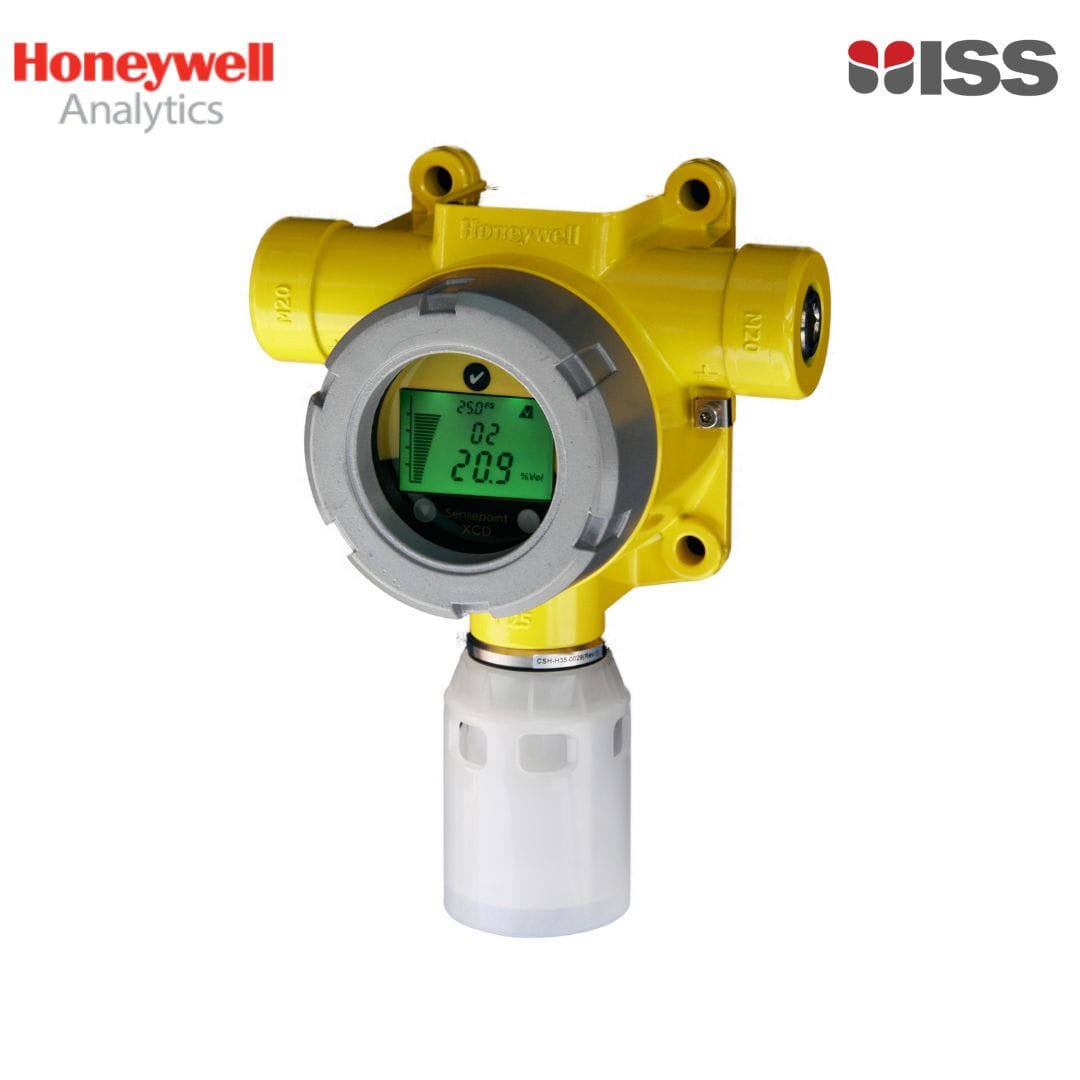

SPXCDASMHX Honeywell Sensepoint XCD Gas Detector,4 to 20 mA output,ATEX/IECEx/Asian approvals (316SS), M20,hydrogen sulfide EC

Honeywell Sensepoint XCD Gas Detector. Contains 4 to 20 mA output and 2 x M20 entries. Includes hydrogen sulphide (H2S) EC sensor cartridge 0 to 50ppm, user selectable FSD between 10 and 100ppm (1 ppm resolution). Includes nylon weather protection.

Standard: ATEX/IECEx/Asian approvals

Material: Painted 316 Stainless Steel

P/N: SPXCDASMHX

The standard XCD gas detector, compliant with Ex d standards for Zone 1 hazardous areas, is available in three versions: flammable gas, oxygen, and toxic gas detection. Each unit is supplied with a pre-installed stainless steel sensor cartridge that is fully tested and calibrated, ready for immediate use. Replacement sensor cartridges can be easily sourced. Configuration and operation are performed using a magnet, avoiding the need to open the enclosure, while the tri-colour backlit display offers clear, instant visual status feedback.

The XCD catalytic sensor can be used to detect flammable gases in the range 0 to 100%LEL, while the infrared (IR) sensor versions are available for the detection of methane in the range 0 to 100%LEL, propane (with cross-sensitivities to ethylene and butane), and Carbon Dioxide (CO2). Both sensors are used in conjunction with the flammable version of the transmitter. The electrochemical cell (EC) sensors are available for the detection of oxygen and toxic gases: Carbon Monoxide (CO), Hydrogen Sulphide (H2S), Nitrogen Dioxide (NO2), and Hydrogen (H2).

Each detector includes:

• pre-fitted sensor
• nylon weather protection
• stainless steel blanking plug
• magnetic wand
• hex keys

All transmitters are also available with a Modbus interface as an option.
