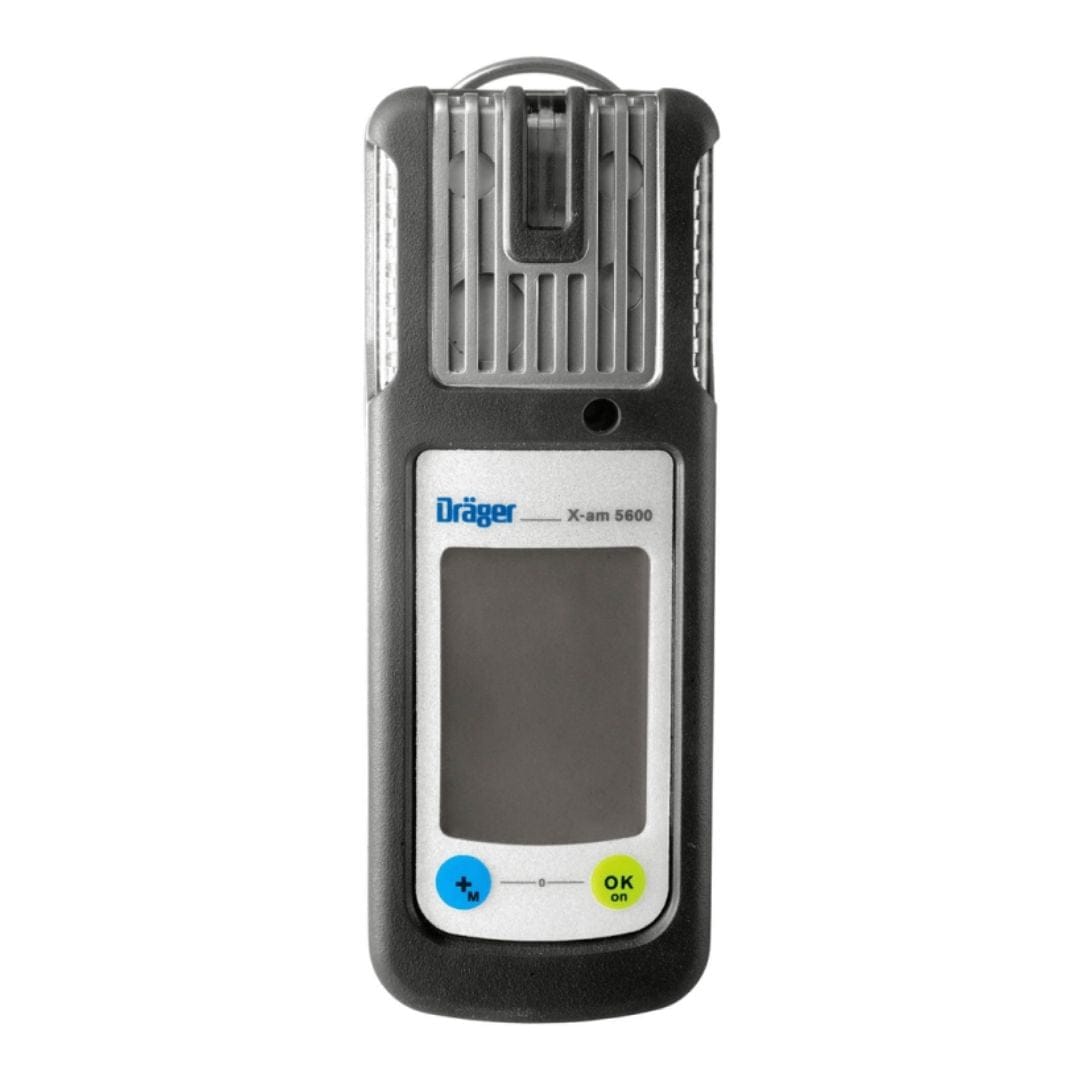

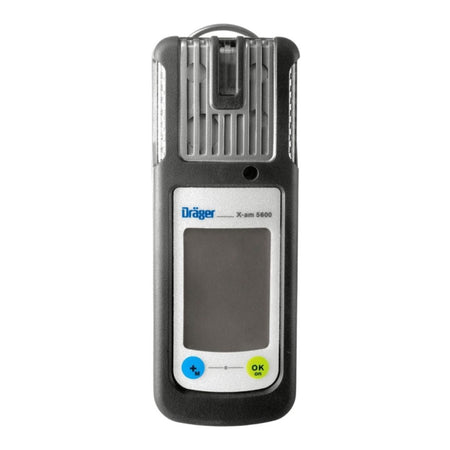

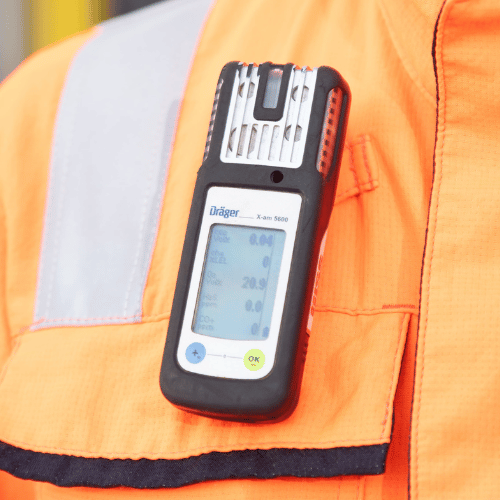

The Drager X am 5600 is a compact, lightweight portable gas detection device designed specifically for personal monitoring, capable of detecting up to 6 gases.
Features:
- Small and robust - waterproof & dustproof
- Single or dual sensor - accurate measurement results
- Suitable for Ex-Zone 0
- Area monitoring in combination with the Dräger X-zone 5000
- Various monitoring possibilities thanks to the combination of innovative infrared technology and the latest electrochemical Dräger XXS miniature sensors
- Data Logging
- Flexible use with an optional external pump
- Durable infrared technology
- Combines two sensor signals (Infrared Ex and electrochemical H2) for reliable hydrogen detection
The package includes a spare rubber boot, printed user instructions, and a calibration certificate.
Sensor and power pack selection is required for operation.
Optional accessories available include charging and calibration equipment, the Dräger Bump Test Station and X-dock calibration systems, communication and evaluation tools, and external pumps
Dräger X-am 5600 is assembled immediately before delivery according to your specifications. WITHOUT sensors and power supply. NOTE: Please see the Electrochemical (XXS) sensors section of the site for sensor choices.
** Please Note: As standard, this product requires calibration and necessary sensor warm-up prior to despatch. As such, delivery times may vary, and next day delivery may not be guaranteed.
^^ With reference to the standard BS EN 60079-29-1, it is strongly recommended that this portable gas detection device is regularly functionally (Bump) tested.
All information is provided by the manufacturer and, while every effort is made to keep it current, we recommend confirming that details suit your needs.
As a Drager Sales Channel partner, ISS can offer a range of support services: incl. training, calibrations and services (we are a Dräger Authorised Service Partner (ASP).
ISS are a leading provider of gas detection and calibration services in Ireland and the UK.
Sensor information below:
See the datasheet below for more information.
| Infrared sensors | Measuring range | Resolution | Part No. |
| Dual IR Ex / CO2 ES | 0 – 100 % LEL | 1 % LEL | 6851880 |
|
0 – 100 Vol.‑% Methane, Propane, Ethene, n‑Butane |
0.1 Vol.-% CH4 | ||
| 0 - 5 Vol.-% CO2 | 0.01 Vol.-% CO2 | ||
| IR Ex ES | 0 – 100 % LEL | 1 % LEL | 6851881 |
|
0 – 100 Vol.‑% Methane, Propane, Ethene, n‑Butane |
0.1 Vol.-% CH4 | ||
| IR CO2 ES | 0 - 5 Vol.-% CO2 | 0.01 Vol.-% CO2 | 6851882 |
| Electrochemical sensors | Measuring range | Resolution | Part No. |
| XXS O2 | 0 – 25 Vol.‑% | 0.1 Vol.‑% | 6810881 |
| XXS CO LC | 0 – 2,000 ppm | 1 ppm | 6813210 |
| XXS O2 100 | 0 – 100 Vol.‑% | 0.5 Vol.‑% | 6812385 |
| XXS O2 PR | 0 – 30 Vol.‑% | 0.1 Vol.‑% | 6800530 |
| XXS CO HC | 0 – 10,000 ppm | 5 ppm | 6812010 |
| XXS CO/H2 compensated | 0 – 2,000 ppm CO | 2 ppm | 6811950 |
| XXS H2S LC | 0 – 200 ppm | 0.1 ppm | 6811525 |
| XXS H2S HC | 0 – 1,000 ppm | 2 ppm | 6812015 |
| XXS CO LC/H2S LC |
0 – 2,000 ppm CO 0 – 200 ppm H2S |
1 ppm CO 0.1 ppm H2S |
6813280 |
| XXS CO LC/O2 |
0 – 200 ppm CO 0 – 25 Vol.‑% O2 |
1 ppm CO 0.1 Vol.‑% O2 |
6813275 |
| XXS H2S LC/O2 | 0 – 100 ppm H2S 0 – 25 Vol.‑% O2 |
0.1 ppm H2S 0.1 Vol.‑% O2 |
6814137 |
| XXS NO | 0 – 200 ppm | 0.1 ppm | 6811545 |
| XXS NO2 | 0 – 50 ppm | 0.1 ppm | 6810884 |
| XXS NO2 LC | 0 – 50 ppm | 0.02 ppm | 6812600 |
| XXS SO2 | 0 – 100 ppm | 0.1 ppm | 6810885 |
| XXS PH3 | 0 – 20 ppm | 0.01 ppm | 6810886 |
| XXS PH3 HC | 0 – 2,000 ppm | 1 ppm | 6812020 |
| XXS HCN | 0 – 50 ppm | 0.1 ppm | 6810887 |
| XXS HCN PC | 0 – 50 ppm | 0.5 ppm | 6813165 |
| XXS NH3 | 0 – 300 ppm | 1 ppm | 6810888 |
| XXS CO2 | 0 – 5 Vol.‑% | 0.1 Vol.‑% | 6810889 |
| XXS Cl2 | 0 – 20 ppm | 0.05 ppm | 6810890 |
| XXS H2 | 0 – 2,000 ppm | 5 ppm | 6812370 |
| XXS H2 HC | 0 – 4 Vol.‑% | 0.01 Vol.‑% | 6812025 |
| XXS OV | 0 – 200 ppm | 0.5 ppm | 6811530 |
| XXS OV‑A | 0 – 200 ppm | 1 ppm | 6811535 |
| XXS Amine | 0 – 100 ppm | 1 ppm | 6812545 |
| XXS Odorant | 0 – 40 ppm | 0.5 ppm | 6812535 |
| XXS COCl2 | 0 – 10 ppm | 0.01ppm | 6812005 |
| XXS Ozone | 0 – 10 ppm | 0.01 ppm | 6811540 |
