705 Flammable Gas Detector - Aluminium - INMETRO - 3/4NPT - 0-100%LEL P/N: 00705-A-1736

P/N: 00705-A-1736

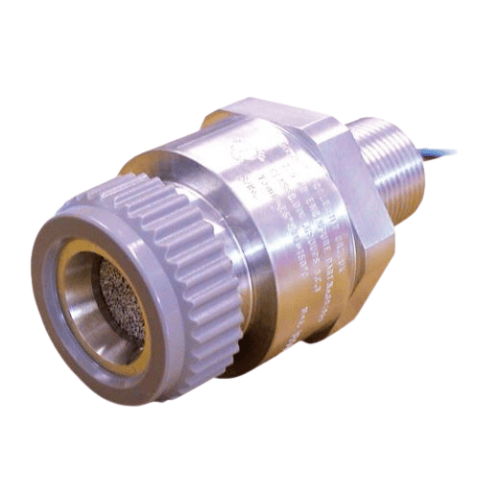

705 Flammable Gas Detector - Aluminium - INMETRO - 3/4NPT - 0-100%LEL

The Model 705 high temperature sensor has been specifically designed for the detection of flammable gases in high temperature hazardous areas.

This sensor provides dependable and stable detection allowing low-level alarm settings across a wide temperature range. The Model 705 High Temperature Sensor has a very stable baseline, as contains a specially matched pair of Sieger poison resistant combustible gas detection elements, allowing alarm trip points to be set as low as 5% LEL across a temperature range of -25°C to +150°C (-3°F to +302°F). Depending on the type of controller used, the gas measuring range can be configured from 0-20% LEL up to 0-100% LEL.

The detector elements are housed in a UL hazardous area approved explosion proof assembly and provide an industry standard 3 wire mV bridge output which can be connected to a suitable control device or converted to an analogue output signal via a field transmitter.
