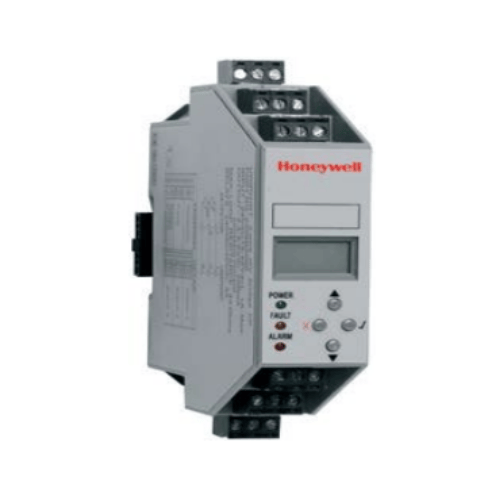

2306B1000 Honeywell Unipoint controller (mA input version)

P/N: 2306B1000

Unipoint controller (mA input version)

Product Overview:

Unipoint has simple installation and can be easily installed into any plastic or metal enclosure for use in many different environments and even in potentially explosive atmospheres. With the addition of one of Honeywell Analytics' range of flammable, toxic or Oxygen detectors, systems may be configured to monitor gases in a wide range of applications.

There are two different versions of Unipoint available: one for mV bridge, catalytic bead type, flammable gas detector and the other for any 2 or 3 wire 4-20mA type gas detector. With the use of a special socket (provided), Unipoint can be easily installed onto the DIN rail. The special socket also interconnects power to adjacent units. Individual Unipoint controllers can be easily changed without disturbing other devices using removable terminal connectors.

By clipping together multiple Unipoints, small to medium sized monitoring solutions can be realised. Audio/visual alarms, three programmable alarms relays and a fault relay are all included in each unit. Each controller is fully user programmable with the use of the ergonomic, push button operated menu system, and the backlit LCD displays gas concentration and system status. Configuration menus can be password protected to prevent unauthorised access. In addition, remote inputs allow you to accept, reset and inhibit alarms without the need to open the enclosure that the Unipoint is mounted in.

Features:

• Clear and vibrant backlit display
• System status codes
• Audio-visual alarms
• Intuitive and user-friendly menu system
• Easy pushbutton operation
• Remote accept, reset and inhibit inputs
• Easy installation with the use of TS35 DIN rail mounting, removable terminal connectors and easy access to terminals
• Fully user programmable scale, units and calibration
• Compatible with a wide range of gas detectors
• Relays configurable as energised, de-energised, latching or non-latching, alarm relay on/off delay

Comprehensive Operation:

• 3 wire mV bridge, 2 and 3 wire 4-20mA inputs
• DC operation
• 3x alarm relays
• 1x system fault relay
• Field inhibit input (mA versions)
