01-HZ-SR1120 Honeywell Sample System Searchpoint Optima (ATEX M25)
Contact ISS

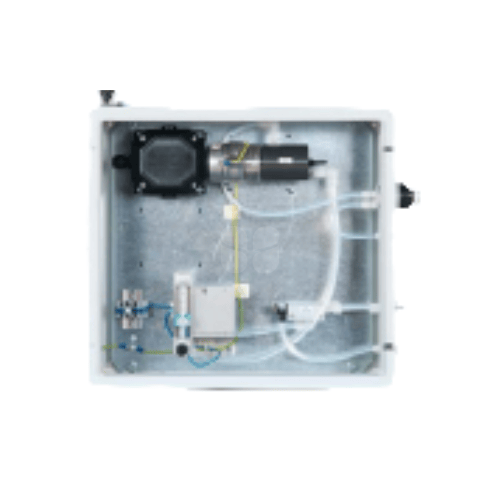

Sample System " Searchpoint Optima (ATEX M25)" for integration of one sensor mounted in series, Type Optima Z consisting of:
- housing 500 x 500 x 200 mm, sheet metal, covered
- injector Typ. 710200 incl. throttle check valve fitting
- 1x sample gas filter AGF-FE-4-KV incl. mounting bracket and filter element FE-E4
- 1x flow meter, type DK800 with needle valve and inductive ring sensor TG15, monostable, Z Z
- bypass-connector for system extension
- completely tubed in PTFE
- suitable to use in hazardous area zone 2
Please note the Optima Z device, the calibration and the junction box need to be ordered separately.
P/N: 01-HZ-SR1120
The XPT sampling system is an easily configurable sampling system. It supports up to two channels of gas detection which can be serial or parallel configured. The XPT system accepts inputs from several Honeywell detectors, those being Searchpoint Optima Plus infrared point detectors, Sensepoint detectors, Sensepoint XCD detectors and XNX transmitters. Three different configurations of Searchpoint Optima Plus are available to suit the requirements of different solvent monitoring applications. The system can be assembled with an injector or pump, and it can be either plate or cabinet mounted.
